Description

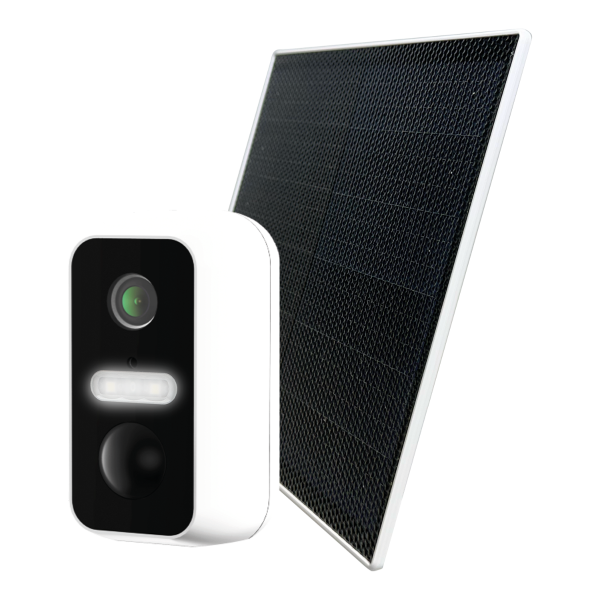

Enjoy vivid colour surveillance day and night with the fully wireless BatteryCam2. This complete kit includes BatteryCam2 with mounting brackets, a USB C SolarPanel2 for continuous power, and a 32GB SD card for event recording storage.
Key Features
-
- Vivid Colour Surveillance
- Adjustable Detection Zone
- Flexible Installation Options
|
Camera
|
|
|
Image Sensor |
1/2.9'' 3 Megapixel CMOS |
|
Effective pixels |
2304(H) x 1296(V) |
|
Shutter |
1/15~1/10,000s |
|
Min luminance |
Colour 0.1Lux@F2.0, Black/White 0.01Lux@ F2.0 |
|
IR distance |
Night visibility up to 10m |
|
Day/Night |
Auto(ICR)/Colour/B&W |
|
WDR |
DWDR |
|
Lens |
3.2mm@F2.0, 130° |
|
|
|
|
Video & Audio
|
|
|
Compression |
H.264 |
|
Bit rate |
32Kbps~2Mbps |
|
Frame rate |
1~25fps |
|
Dual stream |
Yes |
|
Audio input/output |
Built-in mic/speaker |
|
|
|
|
Network
|
|
|
Alarm trigger |
PIR human-body detection |
|
Communication protocol |
HTTP, DHCP, DNS, TCP/IP |
|
Interface protocol |
Private |
|
Wireless |
2.4G WIFI (IEEE802.11b/g/n) |
|
Supported mobile phone OS |
iOS 9 or later, Android 5 or later |
|
Security |
AES128 |
|
Wireless security |
64/128-bit WPA/WPA2, WPA-PSK/WPA2- PSK, WPS |
|
Max user access |
4 |
|
|
|
|
Battery & PIR
|
|
|
Capacity |
9600mAh rechargeable Li batteries |
|
Stand-by current |
200-800 µA (average) |
|
Working current |
150-200 mA (IR off) |
|
Stand-by time |
6 months |
|
Working time |
2-3 months (varies based on settings, usage & temperature) |
|
PIR detection range |
Max. 9m |
|
PIR angle |
120° |
|
|
|
|
General
|
|
|
Operating temperature |
-20 °C to 50 °C |
|
IP rating |
IP65 |
|
Power supply |
DC 5V/1A |
|
Power consumption |
Max. 2W |
|
Optional accessory |
Solar panel |
|
Storage |
SD card (Max.128GB), Cloud storage |
|
Dimensions (W x H x D) |
57 x 63 x 100mm |
|
Net weight |
235g |
| ITM No. | ITM005092 |
|---|---|
| Manufacturer | Pyronix |
| Type of Product | simple |
| New Product | No |
