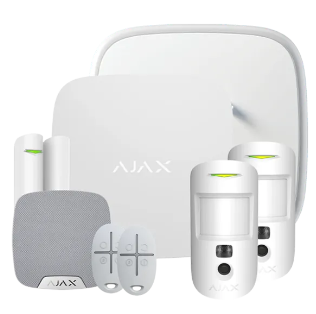

AJAX KIT12 S WHITE - 90785.239.WH1

Hub 2 Plus (3G/LAN/Wi-Fi) Wireless Alarm Pane

The Ajax Hub 2 Plus is a wireless alarm panel which features four communication channels: Ethernet, Wi-Fi and two SIM cards (2G/3G/4G (LTE)), a new powerful processor, tripled RAM capacity and doubled flash memory capacity. The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station.

The Hub 2 Plus is equipped with a GSM module with two SIM-card slots that support 2G/3G/4G(LTE). Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically.

The Hub 2 Plus is ready to operate out of the box. All communication modules, power supply, and backup battery are already installed. To start setting up the system, you need to connect the device to the power supply and the Internet, insert the SIM cards, and scan the QR code through the app. With the SmartBracket mounting panel, there is no need to disassemble the device body during installation.

Connecting security devices, video cameras, users, testing the radio signal, creating groups and scenarios, even sending a request for connection to the CMS - all system settings are always available in the Ajax apps. Whether you are at the site or not.

MotionCam S Wireless PIR Detector

The Ajax MotionCam S (PhOD) is a wireless PIR that features a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly verify the threat and respond accordingly. Photo verification relieves users of unnecessary anxiety and prevents security companies from false patrol calls. Users can take an on-demand photo with a single tap to monitor their house's state at any time. The detector can also automatically take photos by an alarm of another device in the system and by a specific schedule.

The detector needs just a few seconds to show the actual situation on the scene and dispel the user's doubts in case of an alarm. It takes a click in the Ajax app to take an on-demand photo. Also, it can automatically take photos by schedule and when another detector in the system is triggered, such as a smoke alarm.

When an armed detector identifies motion, it instantly sends an alarm to the hub. A control panel activates the sirens connected to the system, triggers scenarios, and notifies users and the security company. The Ajax app’s log displays all the alarms and events. The notifications contain the hub’s name, the device’s name, and the virtual room to which the detector is assigned.

The built-in camera can take from 1 to 5 images with a resolution of 160 × 120 and 320 × 240 pixels, as well as up to 3 images with a resolution of 640 × 480 pixels. The detector has an IR backlight for shooting in the dark, which activates with insufficient light. MotionCam S (PhOD) takes black-and-white photos when shooting in these conditions.

DoorProtect S window/door sensors

The Ajax DoorProtect S is a wireless window/door sensor that notifies of first signs of room intrusion by means of an open door or window. It features 2 British-made hi-end reed switches on which the magnetic field acts and can operate in the transmitter mode, sending a signal from the wired sensor to the hub.

The DoorProtect consists of two modules - detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm. Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Ajax SpaceControl Key Fob

The Ajax SpaceControl is a wireless key fob that works alongside the Jeweller system to arm and disarm the alarm, and also as a panic button in the event of an emergency. The communication is 2-way so you will know that the panel has received the command.

Operating as part of the Ajax security system, the key fob is connected to the hub via the protected Jeweller protocol. In addition, the key fob can be used to control any third-party security central unit through the uartBridge or ocBridge Plus integration module.

The key fob features a system arming button, a system disarming button, a panic button and a night mode button. The green cross illuminates to indicate that it is working correctly.

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.

StreetSiren DoubleDeck Indoor/Outdoor Wireless Sounder

The Ajax StreetSiren DoubleDeck is a wireless siren with LED frame and piezoelectric buzzer, and features a clip lock which allows for branded faceplates, making them ideal for installers and commercial properties. The device is designed for both outdoor and indoor installation. It responds to alarms and tampers triggering by activating the buzzer and LED frame in less than a second. The tamper button triggers when the enclosure is opened or broken, and the accelerometer triggers when somebody’s attempting to move or dismantle the siren.

The buzzer can be set to generate sound from 85 to 113 dB for an adjustable period from 3 to 180 seconds, or it can be completely silent and respond only with LED indication. StreetSiren’s hermetically sealed body has been rated IP54 level of ingress protection.

The StreetSiren DoubleDeck siren operates for 5 years on the pre-installed batteries and features external power terminals. Whether to use batteries as a primary power supply or a backup one is your choice. In any case, the system will notify you about the need for maintenance when the battery level will drain to 20%.

HomeSiren S Indoor Sounder

The Ajax HomeSiren S is a wireless indoor sounder that is part of the Ajax Superior range, which loudly notifies of an alarm during detector activation, with the capacity up to 105 dB.

Developed only for indoor use. It can be quickly installed and set up, is furnished with a LED (plus allows connecting an external LED), and can operate up to 5 years from a battery.

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the siren. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
