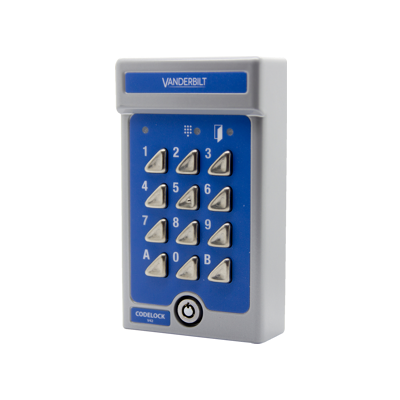

The V42 is the best-selling codelock in the world. It is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. The V42 has a capacity of two four-digit codes. One can be used by residents while the other is used by the property caretaker, for example. All settings are made directly in the unit.
| Operating voltage: | 12 to 24 VAC/DC |
| Dimensions (W x H x D): | 80 x 140 x 40 mm |
| Operating temperature: | -35 bis +55 °C |
| Operation temperature: | -35 to +55 °C |
| Weight: | 0.72 kg |
| Colour: | Blue |
| Housing: | Cast metal with stainless steel buttons and security lock. |
| Housing protection: | IP54 design |
| Environment: | Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover. |
| Code capacity: | Two four-digit codes |
| Opening time: | 1–30 sec. |
| Outputs: | Voltage-free relay contact, max. 1 A, 28 VDC. |
| Inputs: | Exit button requests with delay. Two separate for code disable. |
| Current consumption: | 8 mA in standby |
| ITM No. | ITM001429 |
|---|---|
| Manufacturer | Vanderbilt |
| Type of Product | simple |
| New Product | No |
